Opening: why a framework beats guesswork

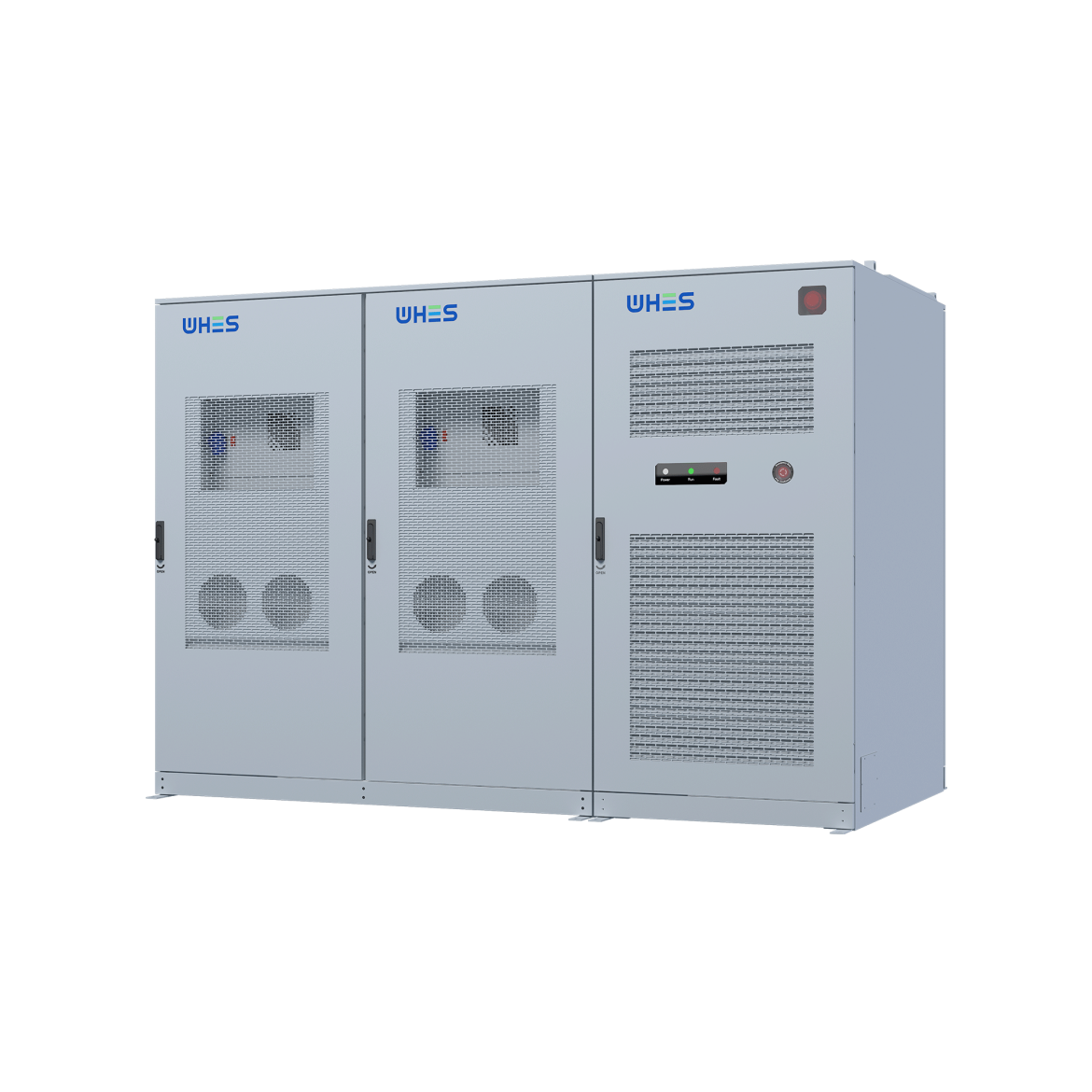

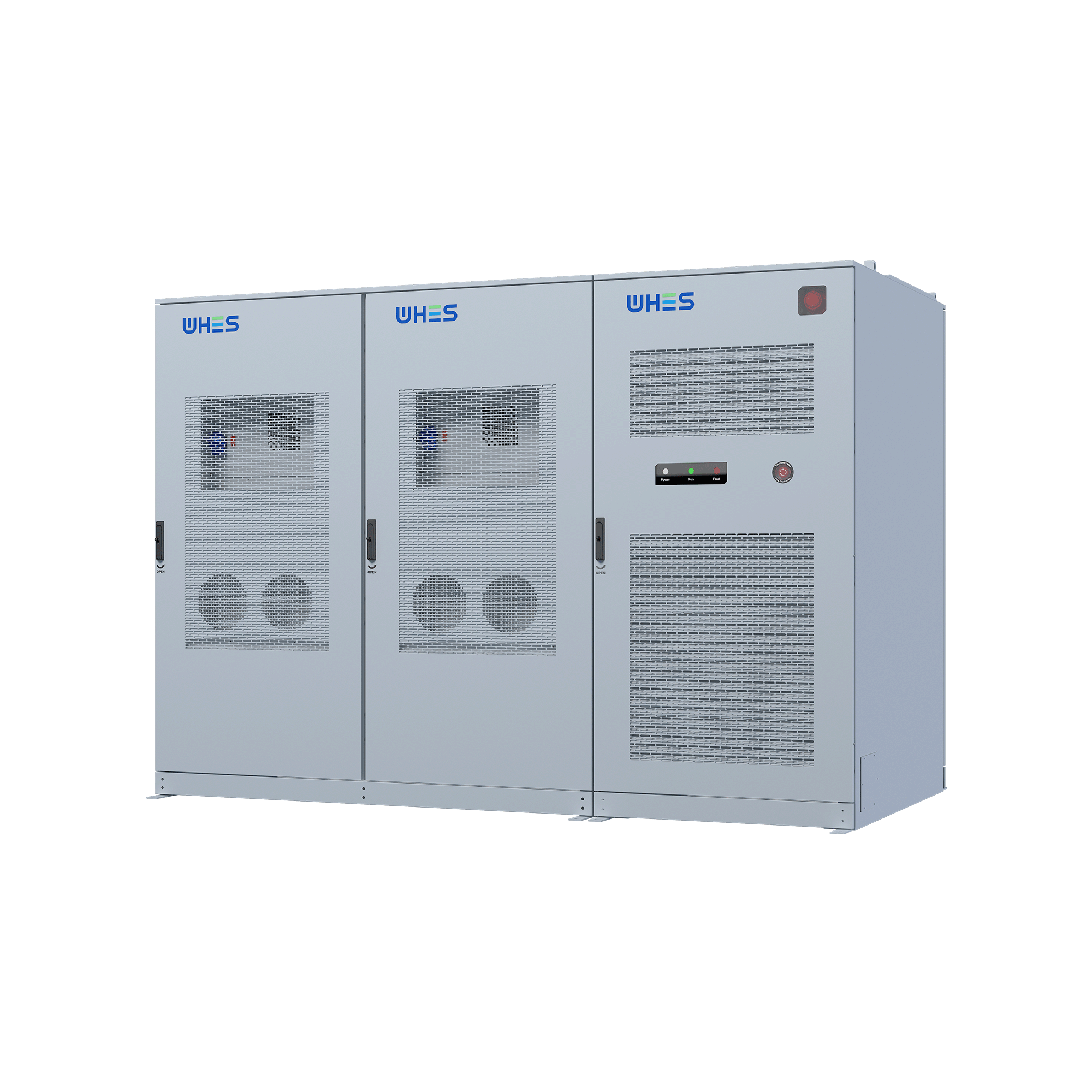

When you specify three‑phase commercial energy storage, ad‑hoc choices cost you reliability and margin. This framework-driven guide lays out the decision path an energy engineer would use: define required services, quantify losses, and force the design to prove thermal stability before procurement. It’s practical, repeatable, and written to help owners, integrators, and specifiers translate performance targets into contract language that suppliers can meet.
Why a specification framework matters
Without a framework you get features, promises, and ambiguity. With one you get measurable acceptance criteria like round‑trip efficiency, thermal run limits, and degradation rate targets. A good spec ties electrical requirements (inverter rating, phase balance) to operational rules (state of charge windows, charge/discharge schedules) and to safety systems (battery management system and thermal management). That linkage prevents surprises on commissioning day.
Core metrics to anchor any design
Three metrics should sit front-and-center in your spec: round‑trip efficiency (RTE), thermal stability, and usable cycle life. RTE determines delivered energy per MWh charged and directly affects operational cost. Thermal stability — including how the pack handles elevated ambient temperatures and transient heat from high C‑rates — dictates BMS strategy and enclosure design. Usable cycle life (not just calendar life) tells you the true replacement cadence and amortized capital cost. Industry practice places lithium‑ion RTE commonly in the mid‑80s to mid‑90s percent range for well‑designed systems; use that as a sanity check when assessing proposals.
Step‑by‑step: specifying a three‑phase system
1) Define the grid services: peak shaving, frequency response, or backup. 2) Set electrical targets: continuous and peak power per phase, harmonic limits, and inverter efficiency. 3) Quantify energy needs: usable kWh and desired SoC window. 4) Require thermal criteria: maximum cell‑case temperature under worst‑case ambient and at peak discharge. 5) Mandate BMS functions: cell‑level monitoring, thermal trip points, and graceful derating. 6) Specify acceptance tests: factory performance curves, thermal soak tests, and integrated site commissioning with your switchgear. This checklist converts vague expectations into verifiable deliverables.
Thermal stability: what to test and why
Thermal management is often the weak link. Ask for thermal soak and abuse tests that simulate actual site conditions, not just lab ambient. Require proof that the system can withstand prolonged high C‑rate events without reaching cell‑level thresholds that risk thermal runaway. Include procedures for thermal derating and clear BMS actions when thresholds are approached. Insist on documentation of heat rejection capacity for enclosures and the expected impact on RTE under elevated temperatures.
Common mistakes and how to avoid them — real talk
Spec writers often slip in three ways: they accept nominal values without test evidence; they neglect phase imbalance effects on inverter sizing; and they under‑specify acceptance criteria for thermal events. Don’t be swayed by headline kW numbers alone. Demand performance curves at relevant SoC points and under realistic ambient profiles. Also, run a short on‑site trial with real load profiles if you can — it catches integration snags early. — A small trial often saves a lot of retrofit work.
Comparing vendor offers: what to probe
When vendors present packages, compare apples to apples: same usable kWh, same operating temperature range, same RTE test method, and the same warranty conditions covering cycle throughput. Ask how the supplier handles inverter‑to‑battery coordination on three‑phase systems and what their BMS does during phase loss or unbalance. Also confirm spare parts lead times and whether firmware updates are controlled or automatic — those affect long‑term operability.
Real‑world anchor: lessons from large deployments
Look at large grid‑scale projects — for example, the Moss Landing Energy Storage Facility in California — where operators learned that cell chemistry, thermal control, and operational rules must align to avoid premature degradation. Those deployments showed that well‑tuned BMS logic and conservative SoC windows extend useful life and reduce fire risk. Use such precedents to justify conservative spec margins in procurement documents.
Alternatives and trade‑offs
If cost pressure is high, you might accept a lower RTE or tighter SoC range to reduce upfront cost — but that increases levelized cost of storage over time. If you need long duration, consider modular systems that let you scale energy independently of power; if you need high‑power bursts, prioritize cell chemistry and cooling capability. Each choice shifts the optimization between capital expenditure, operational efficiency, and safety.
Advisory: three golden evaluation metrics
1) Verified RTE across the operational SoC range: require manufacturer test data showing RTE at low, mid, and high SoC under site‑relevant temperatures. 2) Thermal trip and derating behavior: get explicit BMS thresholds and the system’s response curve so you know how performance changes before a fault. 3) Cycle‑throughput warranty terms: evaluate warranty in terms of energy throughput (kWh) covered, not just years — that aligns incentives to real use.
These metrics turn vendor claims into contractual obligations and make procurement decisions defensible. For many project teams, that clarity is exactly the value they need from a partner like WHES. —
